Products

  • Filters:

S4

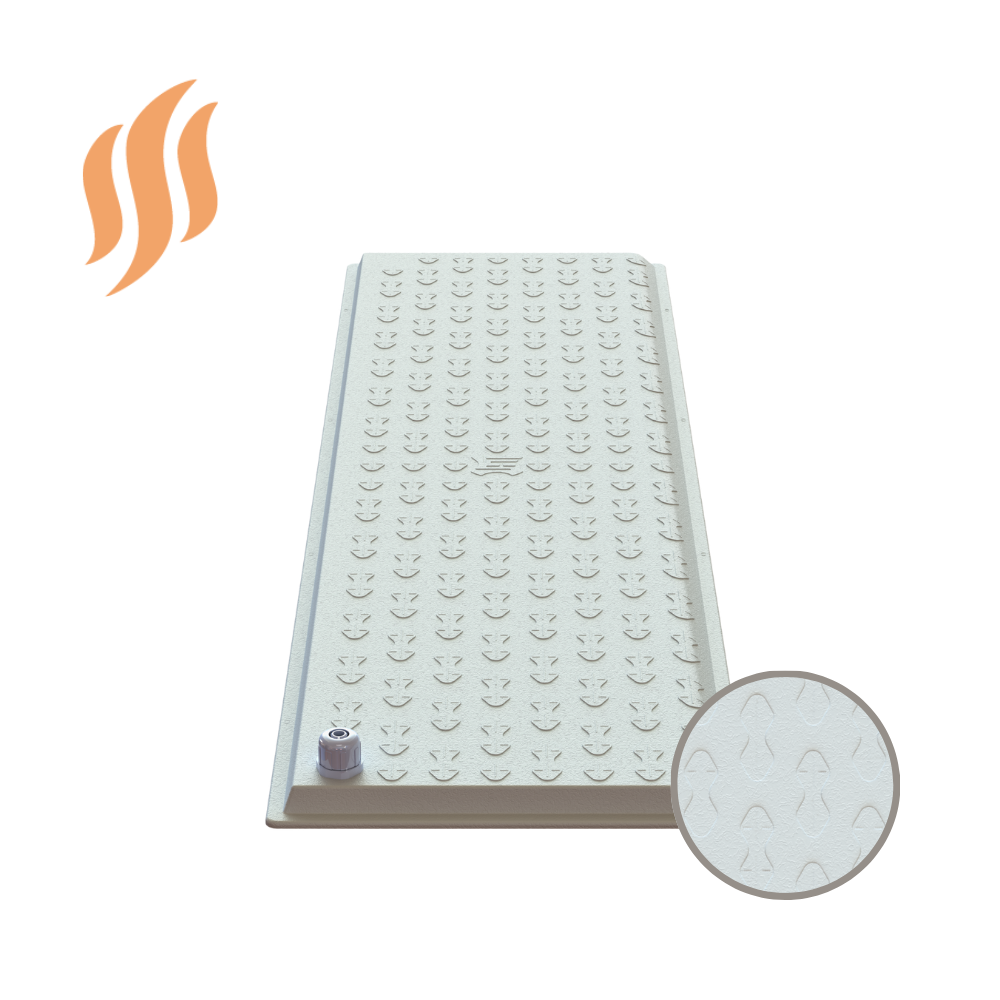

Hog Hearth® Single Mat

The Hog Hearth® Heat Mat provides continuous anti-microbial surface protection from disease-causing microbes and bacteria. The anti-microbial additive lasts a lifetime, eliminating stains, odors, and surface deterioration.

Keep your animals safe by providing the right amount of heat to your pigs at the right time. By increasing the heated area, you can reduce lay-ons and crush piglets. Similarly, our 4X fire-rated enclosure ensures safety, eliminating shocks or fires starting due to the mats. Our long-lasting construction is tested to withstand the impacts of regular use and will continue to save you time and money compared to traditional heating systems.

  • Single 4’ (48” x 14”/120cm x 35.6cm)
  • Single 5’ (60 x 14”/152cm x 35.6cm)
  • Single 6' (72 x 14"/183cm x 35.6cm) *Only available in an ABS Enclosure*
  • Available in 120, 208 & 240 volts
  • Connection: Top, Back or Side Connect
Resources:
Manual
Manual (ESP)
Spec Sheet

Inquire Here

Coming Soon …..

15 W Fixture

15-Watt LED Fixture

The IHT Lighting 15-watt high efficiency LED fixture is designed to provide optimal illumination of agricultural, commercial and industrial facilities. The fixture is designed to provide reliable and consistent performance in a wide variety of lighting applications.

  • Super bright LEDs - Over 2000 lumens
  • 150° beam spread (reduced-glare from frosted globe lens)
  • Ring Wave Surge Tested (2500 volts)
  • Energy efficient – designed to replace 100W incandescent or 25W CFL
  • Input Voltage - 100-277 V/AC 50/60Hz
  • Connection: Easy install with 3 different installation Kits to choose from.
Resources:
Spec Sheet

Inquire Here

D5

Hog Hearth® Double Mat

The Hog Hearth® Heat Mat provides continuous anti-microbial surface protection from disease-causing microbes and bacteria. The anti-microbial additive lasts a lifetime, eliminating stains, odors, and surface deterioration.

Keep your animals safe by providing the right amount of heat to your pigs at the right time. By increasing the heated area, you can reduce lay-ons and crush piglets. Similarly, our 4X fire-rated enclosure ensures safety, eliminating shocks or fires starting due to the mats. Our long-lasting construction is tested to withstand the impacts of regular use and will continue to save you time and money compared to traditional heating systems.

  • Double 4’ (48” x 24”/ 120cm x 60cm)
  • Double 5' (60” x 24"/ 152cm x 60cm)
  • Double 6' (72” x 24"/ 183cm x 60cm) *Only available in an ABS Enclosure*
  • Available in 120, 204 & 240 volts
  • Connection: Top, Back, or Side Connect
Resources:
Manual
Manual (ESP)
Spec Sheet

Inquire Here

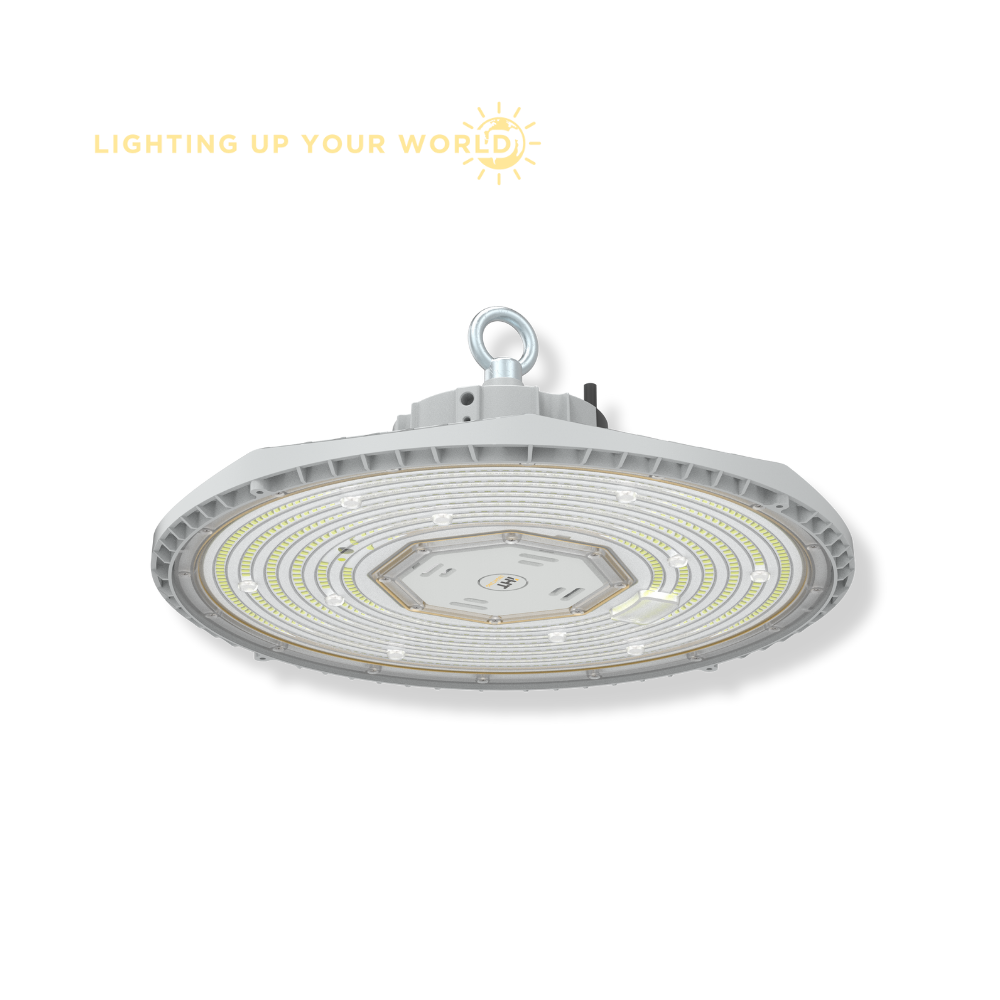

High Bay Fixture

High Bay LED Fixture

The IHT Lighting High Bay Fixture is designed to accommodate a variety of mounting heights and customer applications. The traditional round form factor and ultra-thin design simplifies the installation process for contractors. It also provides lighting design flexibility with the option to select from three lumen outputs and three colour temperatures.

  • Rated life (L80) / 5 Years (DOP) / 50,000 Hours
  • Selectable Lumen Output and CCT (Correlated colour temperature)
  • UL Certified and DLC Listed
  • NEMA Type 4X Enclosure
  • Up to 140 lm/watt (Super Bright LED's)
  • Built in 0-10V dimming function
  • Input Voltage 120-347 V/AC, 50/60Hz
Resources:
Spec Sheet

Inquire Here

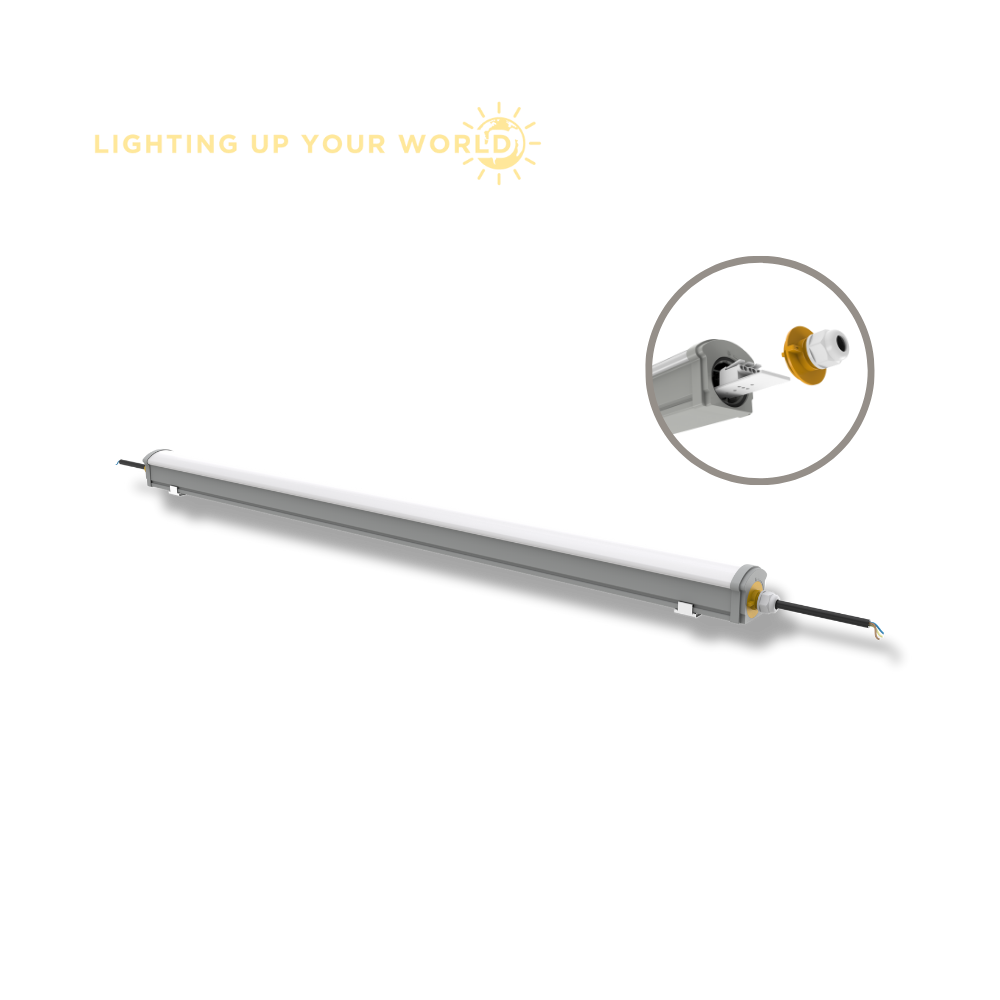

Tri Proof Fixture

Tri-Proof LED Fixture

The IHT Lighting Tri-Proof light is built for liquid tight, optimal illumination of agricultural, commercial and industrial locations. The entire fixture is designed to meet and exceed 4X performance standards in a wide variety of lighting applications.

  • Limited 5 Year (50,000 hours) Warranty
  • Water-proof, Dust-proof, and Corrosion Proof
  • Easy installation, choice of surface mounted or suspended.
  • IP-66 Rated with a NEMA 4X Enclosure
  • cETLus and DLC Listed
  • 140 lm/watt (Super Bright LED’s)
  • Power and Lumen Output - 40W/5600lm
  • Input Voltage - 100-277 V/AC, 50/60Hz
  • Built-in 0-10V dimming function
  • 120° Beam Spread Output
Resources:
Spec Sheet

Inquire Here

C6

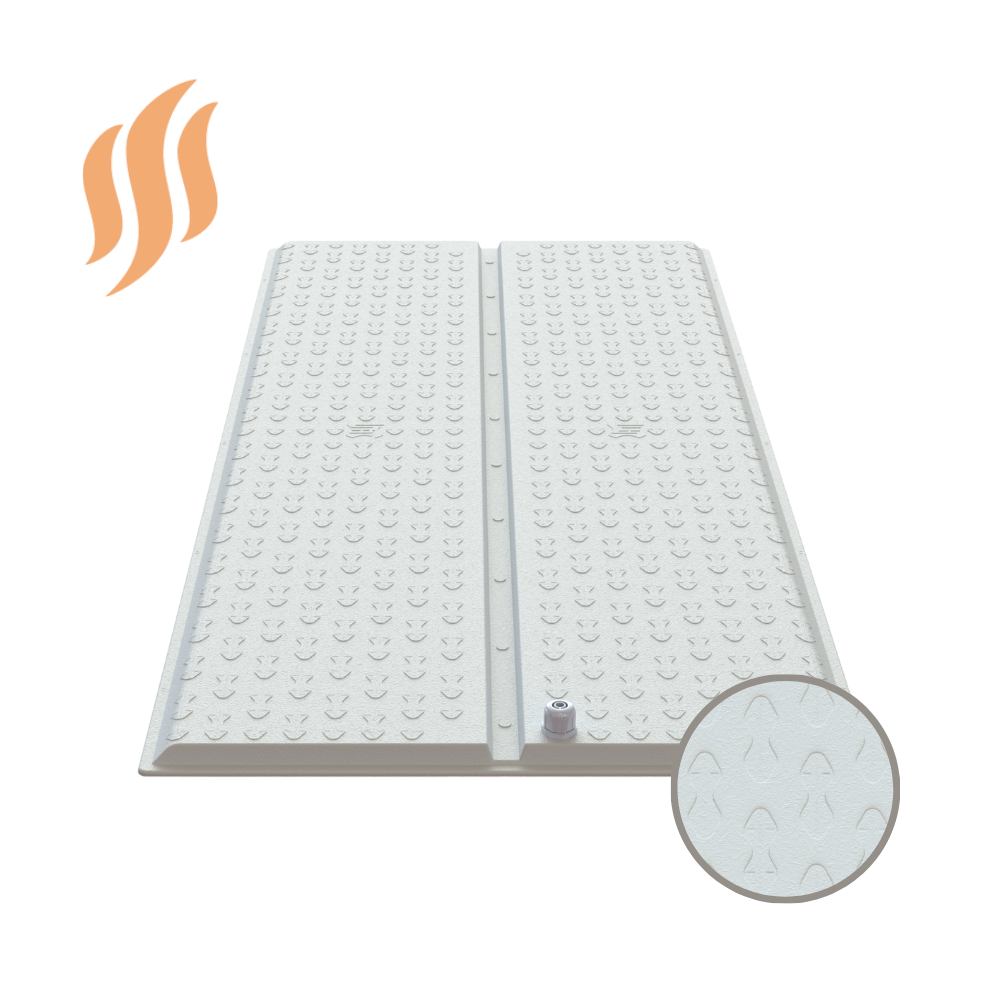

Hog Hearth® Channel Mat

The Hog Hearth® Heat Mat provides continuous anti-microbial surface protection from disease-causing microbes and bacteria. The anti-microbial additive lasts a lifetime, eliminating stains, odours, and surface deterioration.

Keep your animals safe, getting the right amount of heat to your pigs at the right time. By increasing heating zone, reduce lay-ons and crushing of piglets. Similarly, our 4x fire-rated enclosure ensures safety, eliminating shocks, or fires starting due to the mats. Our long-lasting construction is tested to be able to withstand the impacts of regular use and will continue to safe you time and money compared to traditional lighting systems.

  • Channel 4' (48” x 28”/ 120cm x 71.12cm)
  • Channel 5' (60” x 28”/ 152cm x 71.12cm)
  • Channel 6' (72” x 27”/ 183cm x 68.6cm) *Only available in an ABS Enclosure*
  • Available in 120, 208 & 240 volts
  • Connection: Top, Back, or Side Connect
Resources:
Manual
Manual (ESP)
Spec Sheet

Inquire Here

Msu

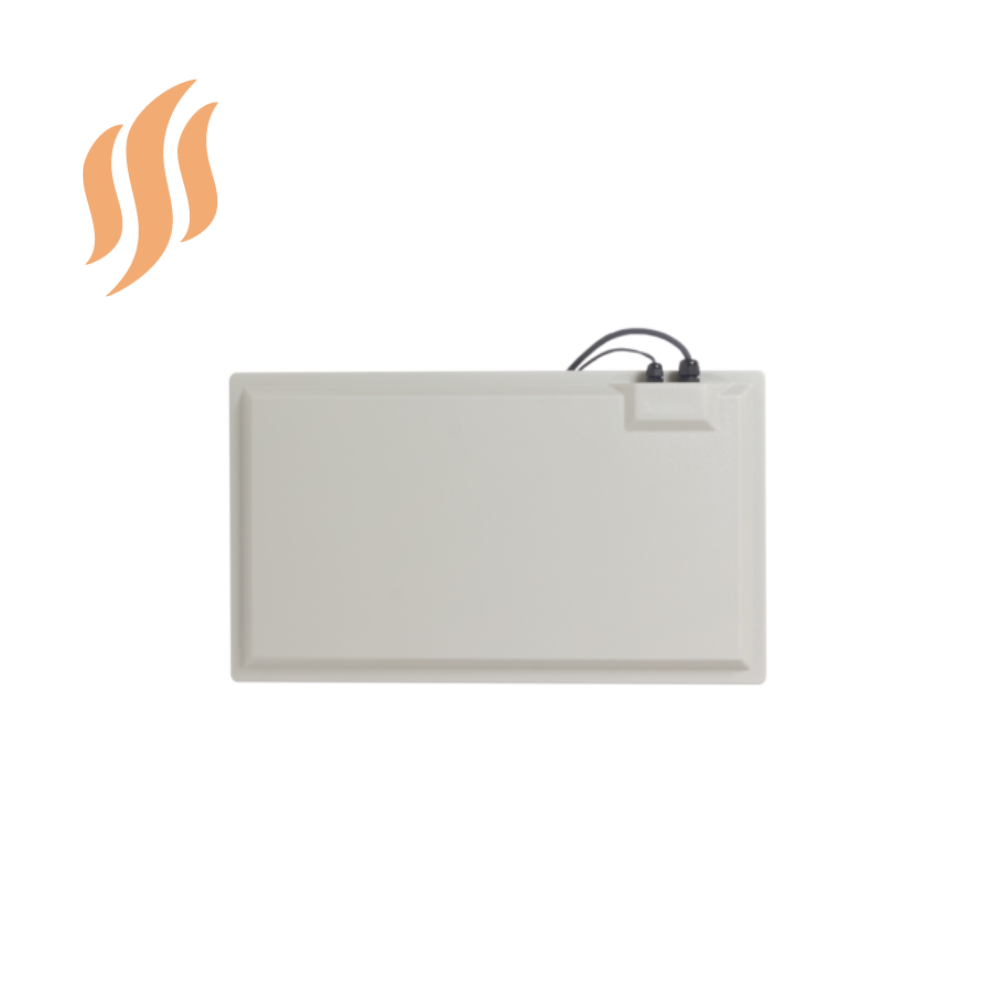

Wall Mounted Sensor Unit

The Wall Mounted Sensor Unit allows your Hog Hearth mats to operate most efficiently while ensuring that all piglets receive the right amount of heat at the right time.

  • 24" x 14” (60cm x 35.6cm)
  • Available in 120, 208 & 240 volts
  • Connection: Side Connect
Resources:
Manual
Manual (ESP)
Spec Sheet

Inquire Here

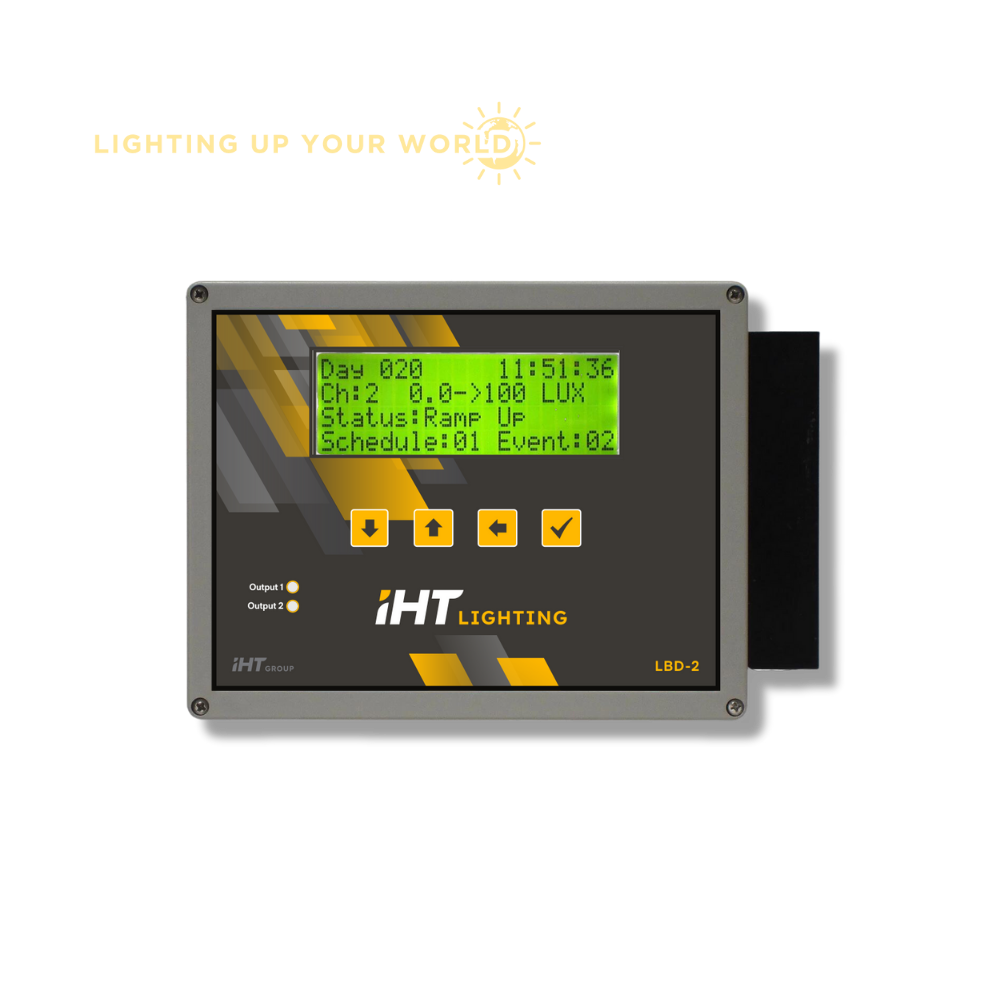

Ldb 2

Light Dimmer Box (Model LDB-2)

Versatile lighting control for a variety of applications. The Light Dimmer Box is a two-channel control designed around its easy-to-use functionality and ability to control LED, CFL, or incandescent lights. The large LCD display is bright, easy to read and the soft-touch keypad makes it a breeze to navigate through the menu and program the control. Increased scalability when combined with the Light Dimmer Box Slave unit.

  • Configurable 365-day lighting program
  • Up to 20 schedules/lighting periods, per control mode
  • Up to 12 events per schedule
  • Two variable AC channels
  • Two DC-signal channels
  • 2 year warranty
Resources:
Spec Sheet

Inquire Here

Ldb 2 Exp

Light Dimmer Box Expansion (Model LDB-2EXP)

The Light Dimmer Box Expansion has a 20 A variable AC stage for controlling incandescent or LED lights. Installation is simple and requires no additional configuration; all Expansion Boxes follow the programs and settings of the main control (LDB-2).

  • NEMA 4X enclosure
  • Variable AC stage
  • Expandable capacity using additional units
  • 2 year warranty

Inquire Here

Nursery

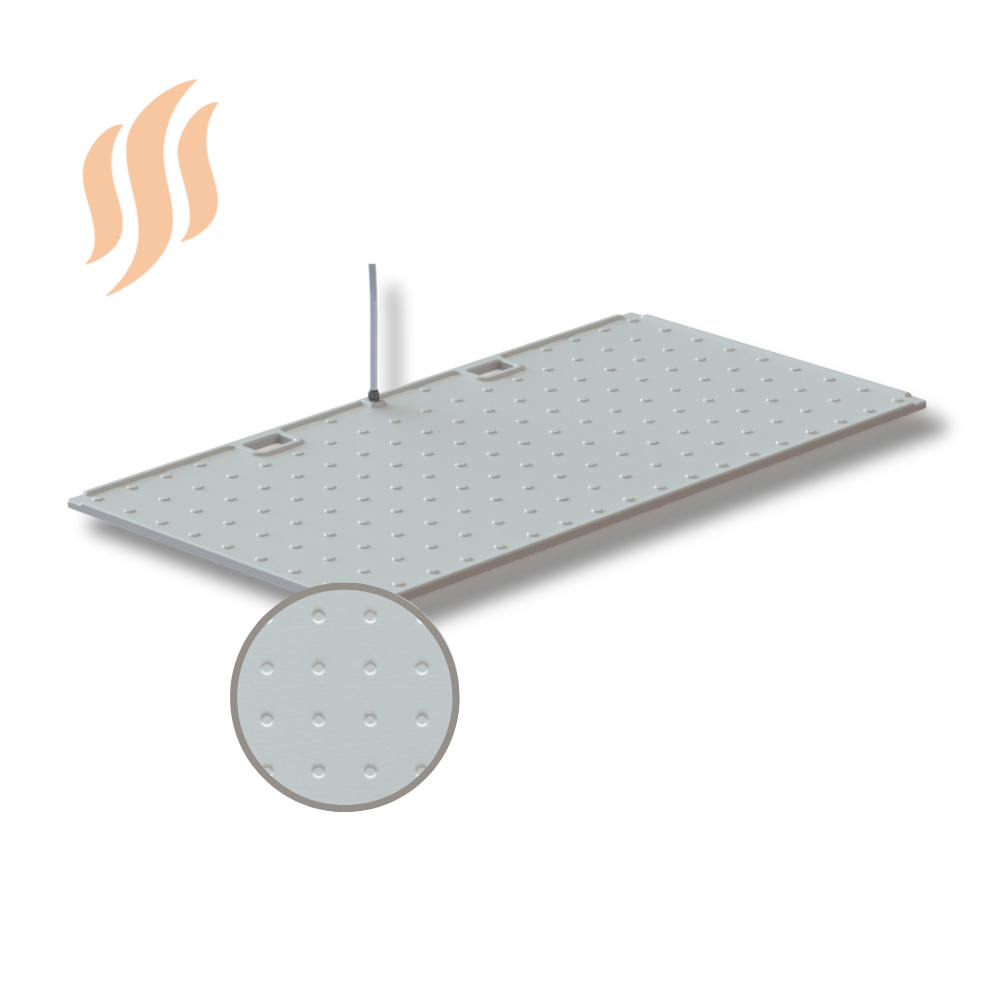

Hog Hearth® Nursery Mat

The Hog Hearth Nursery Mat provides continuous anti-microbial surface protection from disease-causing microbes and bacteria. The anti-microbial additive lasts a lifetime, eliminating stains, odours, and surface deterioration.

Keep your animals safe by providing the right amount of heat to your pigs at the right time. By increasing the heated area, you can reduce lay-ons and crush piglets. Similarly, our 4X fire-rated enclosure ensures safety, eliminating shocks or fires starting due to the mats. Our long-lasting construction is tested to withstand the impacts of regular use and will continue to save you time and money compared to traditional heating systems.

  • 72” x 36”/ 183cm x 91.5cm
  • Available in 120, 208 & 240 volts
  • Connection: Top or Side connect, on the Long or Short edge
Resources:
Manual
Manual (ESP)
Spec Sheet

Inquire Here

Angled Single

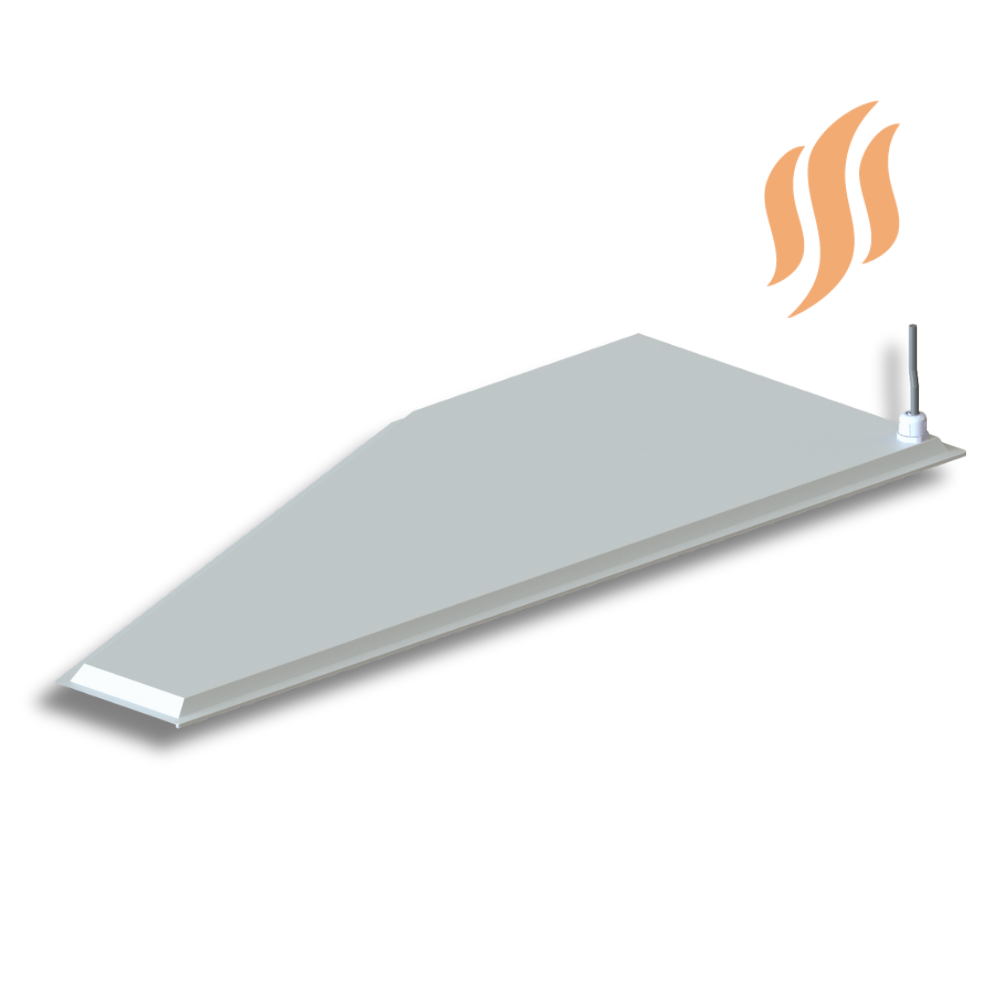

Hog Hearth® Angled Single Mat

The Hog Hearth® Heat Mat provides continuous anti-microbial surface protection from disease-causing microbes and bacteria. The anti-microbial additive lasts a lifetime, eliminating stains, odors, and surface deterioration.

Keep your animals safe by providing the right amount of heat to your pigs at the right time. By increasing the heated area, you can reduce lay-ons and crush piglets. Similarly, our 4X fire-rated enclosure ensures safety, eliminating shocks or fires starting due to the mats. Our long-lasting construction is tested to withstand the impacts of regular use and will continue to save you time and money compared to traditional heating systems.

  • 54' x 18" (45.7cm x 137cm)
  • Available in 120, 204 & 240 volts
  • Connection: Top, Back, or Side Connect
Resources:
Manual
Spec Sheet

Inquire Here

Dol 16 Light Sensor

DOL 16 Light Sensor

The DOL16 Light Sensor measures light intensity in two different ranges: 0 to 100 and 0 to 1000 lux. The DOL16 has very low output resistance and full protection against short circuits and wiring failures. The microprocessor-controlled sensor has a two-colour status and diagnostic LED.

  • Easy installation
  • Rugged and durable low-maintenance design
  • Two 0 to 10 V outputs
  • Connection: 6.6-foot cable, extendable to 328 feet
Resources:
Manual

Inquire Here

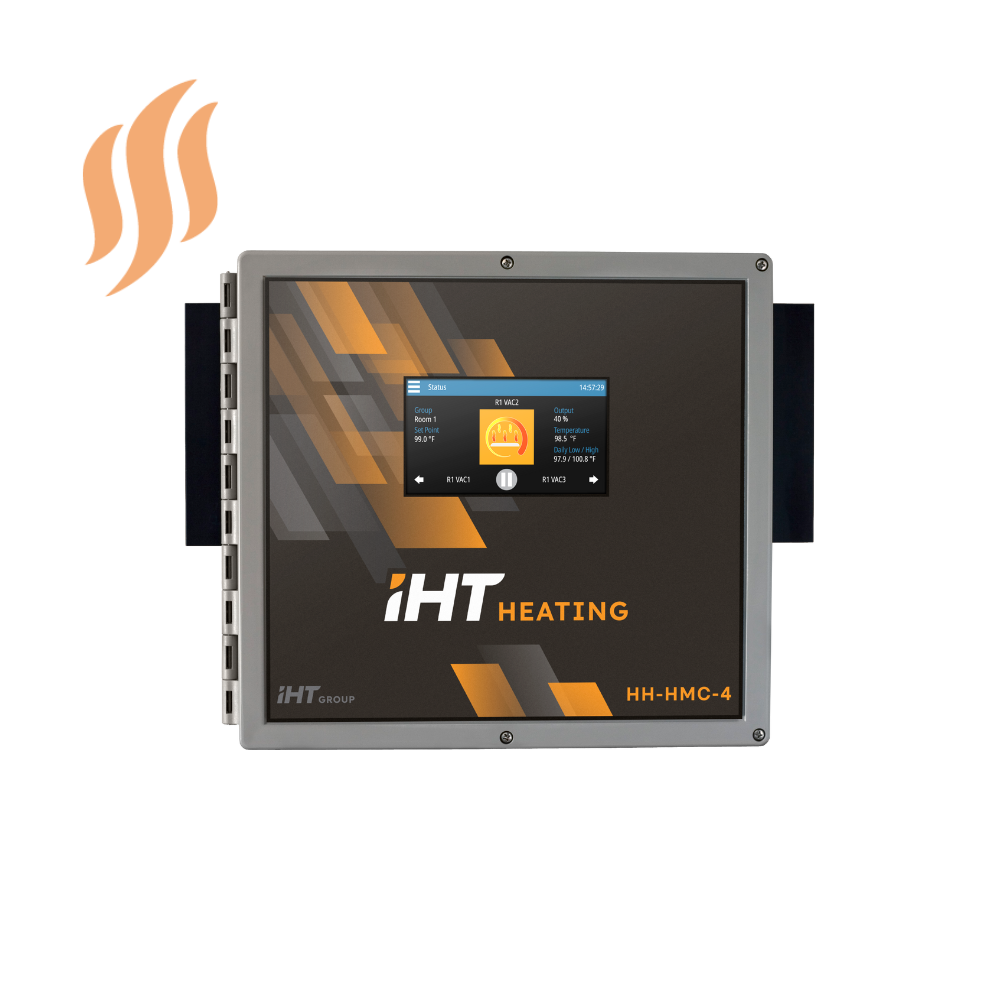

Hmc 4

Heat Mat Controller v4 (Model HH-HMC-4)

The Heat Mat Controller V4 is our most advanced controller available to date. Designed to provide optimal control over any size of hog hearth heat mats, program and schedule the appropriate heat to best care for your animals.

All configuration and programing parameters are easy to customize and are never more than a few button presses away. Made for the everyday farmer, our controller is geared for ease of setup and programmability.

  • 11.85" x 11"
  • Incoming power: 120/230 VAC, 50/60 Hz
  • Control fuse: 250 V, 1 A fast-acting glass
  • Variable stages: (4) 10 A at 120/230 VAC, general-purpose (resistive) / 1150 W at 120 VAC; 2300 W at 230 VAC / Fuses (4): 15 A, 250 VAC ABC-type ceramic
  • Alarm relay: 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load / 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
Resources:
Manual
Quick Setup Guide
Spec Sheet

Inquire Here

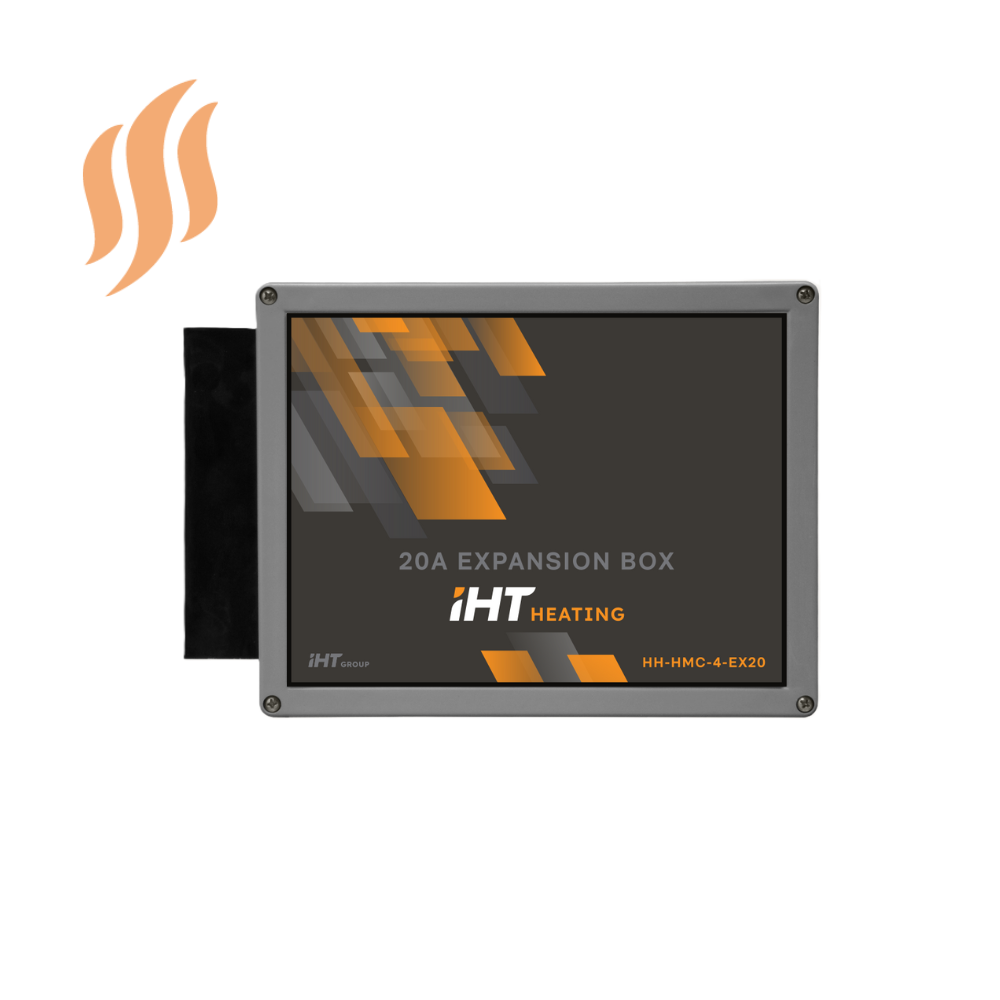

Hmc 4 Exp

Heat Mat Controller v4 Expansion (Model HH-HMC-4-EX10/20)

The Heat Mat Controller Expansion has a 20 A variable AC stage for controlling Hog Hearth Heat Mats. Installation is simple and requires no additional configuration; all Expansion Boxes follow the programs and settings of the main control (HMC-4).

The Expansion Boxes for the HMC 4 have two variants. The 2-10A Expansion (HH-HMC-4-EX10) is used to expand 2 individual zones of the HMC 4 by 10 Amps, and the 20A Expansion (HH-HMC-4-EX20) is used to expand 1 zone of the HMC 4 by 20 Amps.

  • NEMA 4X Enclosure
  • Variable AC stage
  • Expandable with additional units
  • 2 year warranty
Resources:
Manual
Spec Sheet

Inquire Here

Hmc 2 Exp

Heat Mat Controller v2 Expansion (Model HH-HMC-2-EX20)

The Heat Mat Controller Expansion has a 20 A variable AC stage for controlling Hog Hearth Heat Mats. Installation is simple and requires no additional configuration; all Expansion Boxes follow the programs and settings of the main control (HMC-2).

  • NEMA 4X Enclosure
  • Variable AC stage
  • Expandable with additional units
  • 2 year warranty
Resources:
Spec Sheet
Manual

Inquire Here

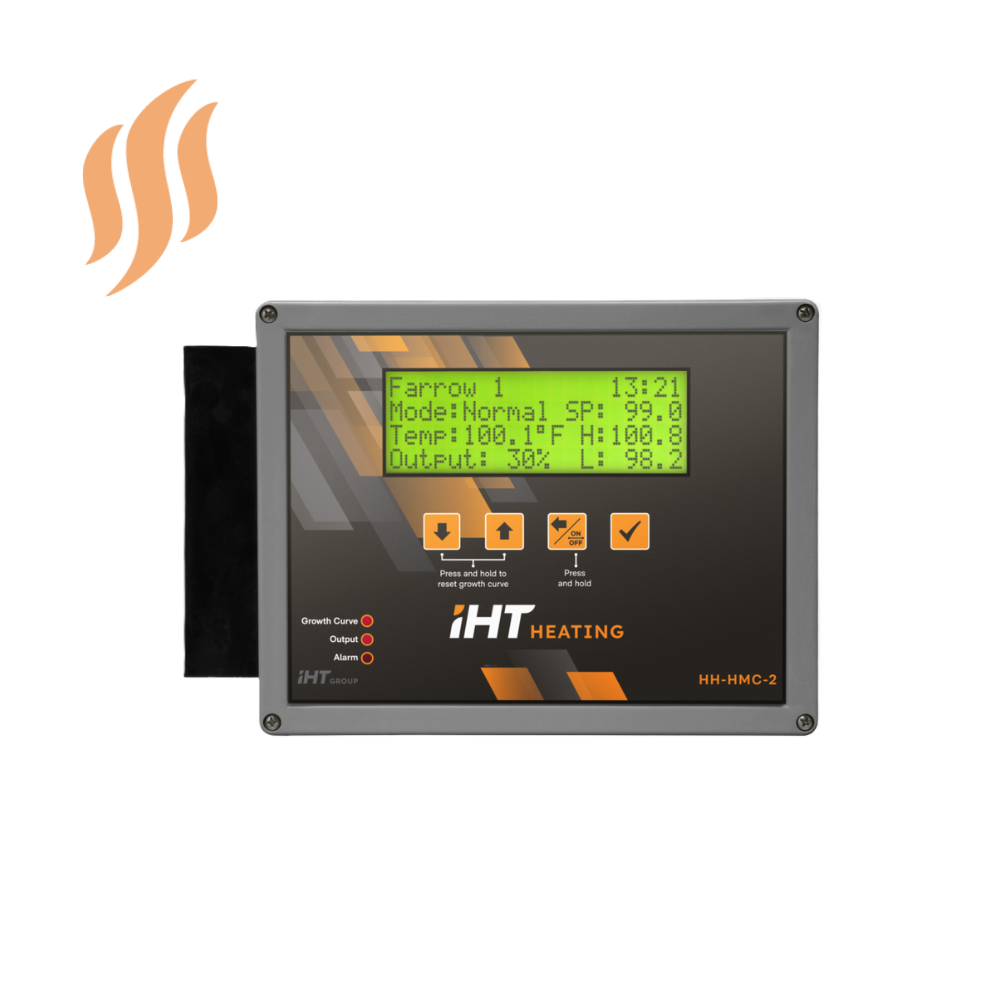

Hmc 2

Heat Mat Controller v2 (Model HH-HMC-2)

The Heat Mat Controller V2 is our most value packed controller available to date. Designed to provide optimal control over any size of hog hearth heat mats, program and schedule the appropriate heat to best care for your animals.

All configuration and programing parameters are easy to customize and are never more than a few button presses away. Made for the everyday farmer, our controller is geared for ease of setup and programmability.

  • 9" x 7"
  • Incoming power: 120/230 VAC, 50/60 Hz
  • Control fuse: 250 V, 1 A fast-acting glass
  • Variable stage: 20A at 120/230 VAC, general-purpose (resistive) / 2300 W at 120 VAC; 4600 W at 230 VAC
  • Alarm relay: 0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load / 0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
Resources:
Manual
Quick Start Guide
Spec Sheet

Inquire Here

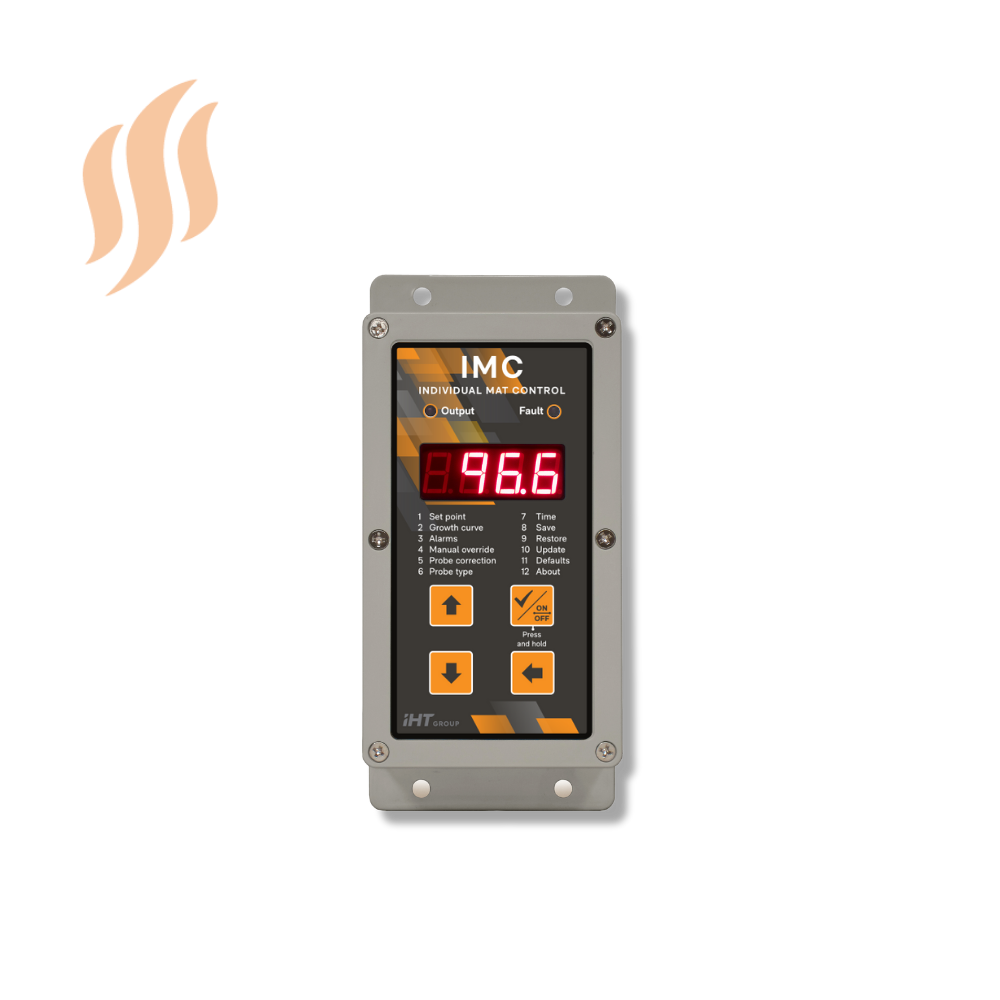

Imc

Individual Mat Controller

The IMC includes a variable heating stage with a pre-programmed, six-step growth curve. IMC (3.5A) provides optimal control over the Hog Hearth heat mats.

IMC Configuration and programming parameters are never more than a few buttons presses away, making the IMC a trouble-free temperature controller geared for easy setup and ease of use in a wide range of heating applications.

  • 7.75" x 3.5"
  • Incoming power: 120/230 VAC, 50/60 Hz
  • Variable stage: 3.5 A at 120/230 VAC, 400 W at 115 VAC: 800 W at 230 VAC
Resources:
Manual
Spec Sheet

Inquire Here

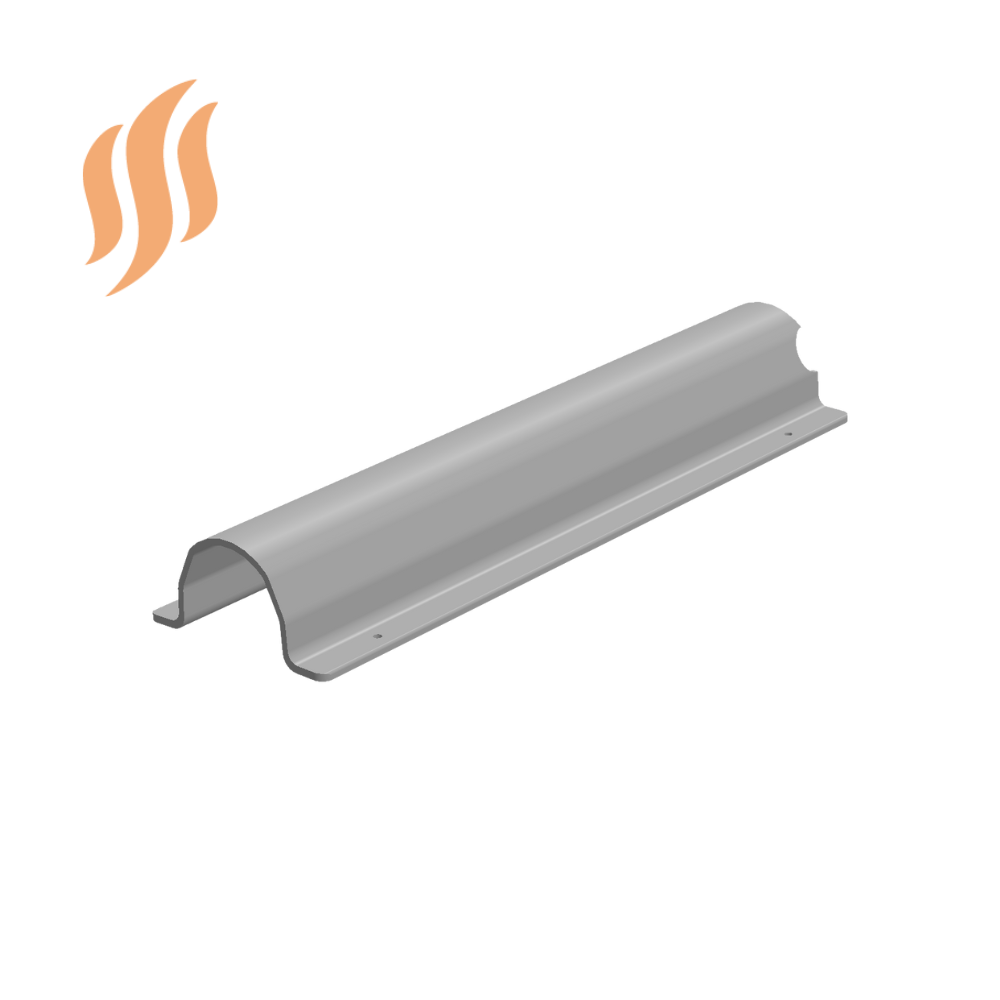

Cord Protector

Cord Protector Kit

The Cord Protector Kit is designed to protect the connector, conduit, and power cable from external damage.

  • 1 – 18” Cord Protector (ABS Vacuum Formed)
  • 4 – Stainless steel Flat Washers (0.4375” OD x .032”)
  • 4 – Pan Head Stainless Steel Screws (1/2”)
Resources:
Manual

Inquire Here

Brackets

Mounting Brackets

Designed to securely fasten Hog Hearth heat mats to most types of grated/woven plastic and metal flooring.

  • Standard Bracket Set (Includes 4-3” Brackets)
  • Extension Bracket Set (Includes 2 -12” & 2-3” Brackets)
  • Single Extensions Bracket Set (includes 3-3 “& 1 – 12” Brackets)
Resources:
Manual

Inquire Here
